Specifications
| Model | kW | Phase/Voltage | GPH | Dimensions | Amp |
|---|---|---|---|---|---|
| RE5kW | 5 | 1/220 | 1.5 | 45″H x 18″W x 21″D | 30 |
| RE10kW | 10 | 1/220 | 3 | 49″H x 34″W x 21″D | 100 |
| RE20kW | 20 | 3/400 | 6.3 | 59″H x 30″W x 66″L | 50 |
| RE50kW | 50 | 3/480 | 15.6 | 59″H x 30″W x 66″L | 100 |
RE Series
Description

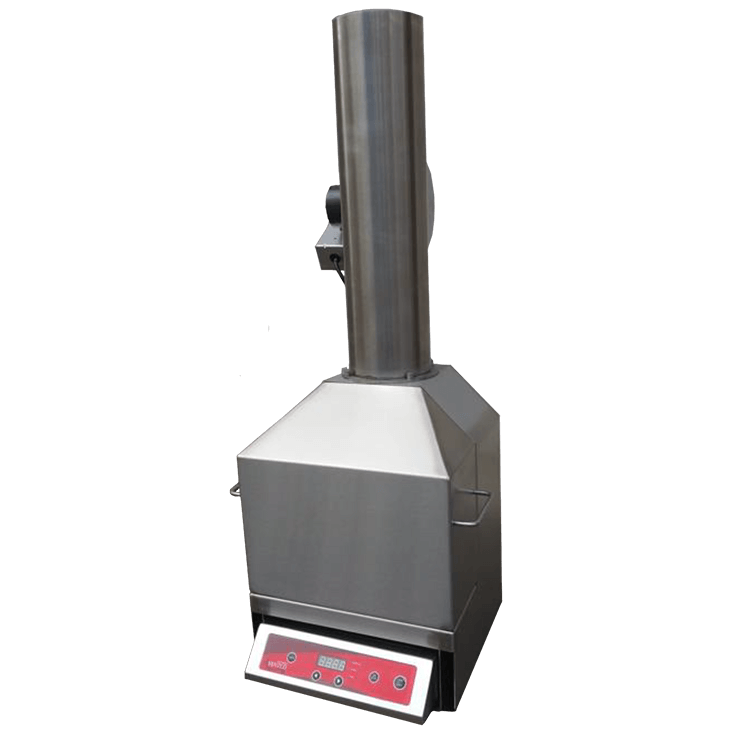

The Mini Series evaporators are small but powerful. Each unit has a duplex stainless steel 6.6 gallon process tank with 1/4″ thick base, for maximum heat transference of the magnetic induction input.
- CRA (Chloride Resistant Alloy) Stainless Steel Construction
- Timer Shut Down
- Run-Dry Capability
- Removable Cover
- Removable Process Chamber
- Dual Exhaust Fans
- Portable Design
- Thermostat Control
- 10 Year Chassis Warranty
All Reduction LLC evaporators and accessories are free standing. Installation is plug and play for a fast and easy start up.
